DBV Flat Pin Terminal

DBV Flat Pin Terminal

(8 đánh giá)

DBV

ANDELI

12 tháng, 1 đổi 1 lỗi nhà sản xuất, chiết khấu cao cho các dự án, hỗ trợ vận chuyển đơn hàng >2tr

DBV Flat Pin Terminal

+ Genuine import with full CO, CQ, VAT invoice

+ Always have large inventory.

+ Support projects and agents

📞 Contact us now:
📌 Sales 1: 0983.607.668
📌 Sales 2: 0964.602.568
📌 Emergency: 0869.685.636

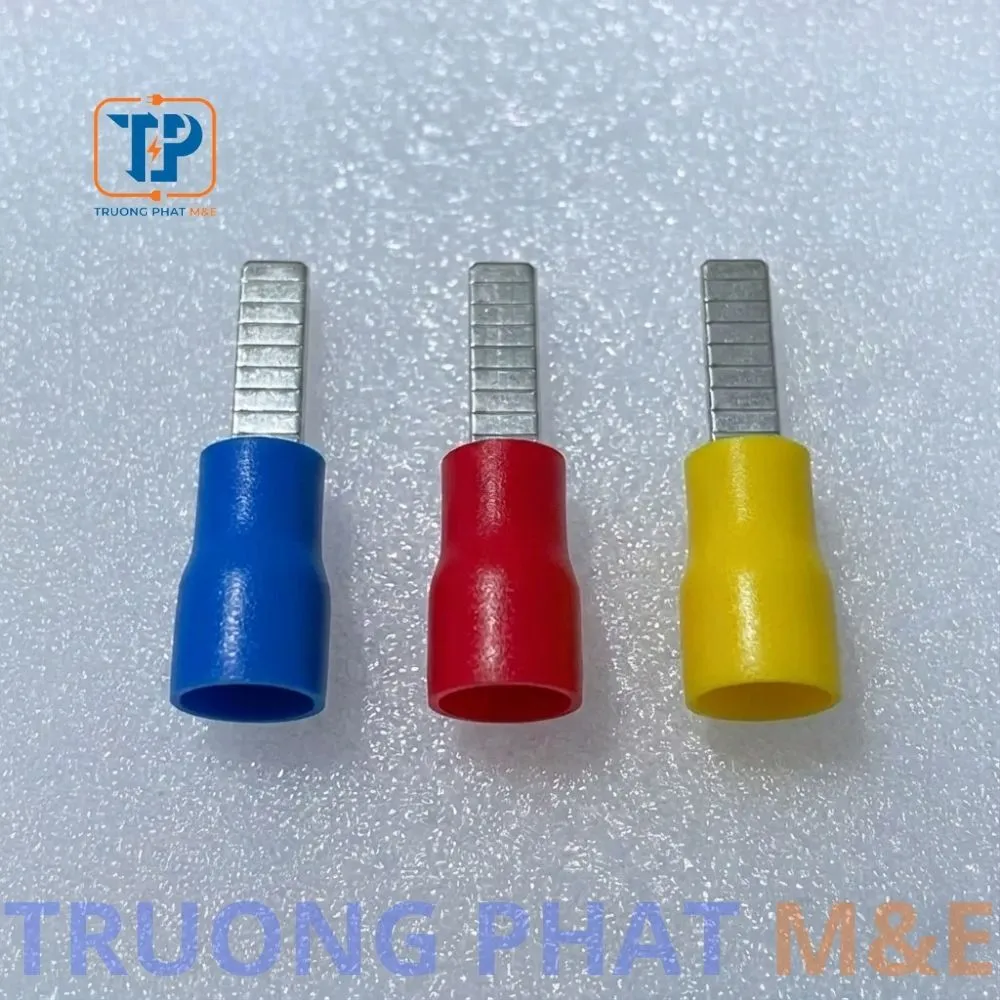

🔌 DBV Flat Pin Terminal – Secure, Fast & Reliable Electrical Connection ⚡

✅ What is a DBV Flat Pin Terminal?

A DBV Flat Pin Terminal (also called a flat pin crimp terminal / DBV terminal) is an electrical connector designed to be crimped onto the end of a wire to create a clean, strong, and safe termination. The flat pin shape allows quick insertion into terminal blocks, relays, contactors, circuit breakers, and other control devices.

It is widely used in industrial control panels, electrical cabinets, automation systems, and M&E projects, especially where wiring needs to be neat, easy to maintain, and highly reliable.


🌟 Key Benefits of DBV Flat Pin Terminals

Using a DBV flat pin terminal offers clear advantages:

  • Stable conductivity with improved contact performance

  • 🔒 Strong wire retention, reducing the risk of loose connections

  • 🛡️ Better safety, lowering overheating and short-circuit risks

  • 🧰 Faster installation, ideal for high-volume panel wiring

  • Clean and professional wiring, improving cabinet organization


🧩 Structure & Common Materials

A typical DBV flat pin terminal includes:

  1. 🗜️ Crimp barrel – where the conductor is inserted and crimped

  2. 🔌 Flat pin blade – designed for easy connection to equipment terminals

🧱 Common materials:

  • 🟠 Copper (excellent conductivity, widely used)

  • 🛡️ Tin-plated surface (anti-oxidation, corrosion resistance, longer lifespan)


🎨 Color Coding (for easier wire size selection)

Many DBV terminals use color insulation to help identify wire cross-section ranges (depending on manufacturer standards):

  • 🔴 Red: smaller wires (often used in control panels)

  • 🔵 Blue: medium wires

  • 🟡 Yellow: larger wires

  • ⚫ Black: heavy-duty wire sizes / higher load

📌 Note: Color-to-size standards may differ by brand. For best accuracy, always check the product code/spec sheet.


🛠️ How to Crimp DBV Flat Pin Terminals Properly

To ensure a durable and safe termination:

  • ✂️ Strip the wire insulation to match the barrel length

  • 🧵 Twist strands neatly (for stranded wire) to avoid fraying

  • 🔧 Insert the conductor fully into the crimp barrel

  • 🗜️ Use a proper crimping tool with the correct die size

  • ✅ Perform a pull test: the wire should not slip out

👉 Correct crimping prevents loose contact, overheating, and connection failure.


🏭 Typical Applications

DBV flat pin terminals are commonly used in:

  • 🧰 Industrial control panels / electrical cabinets

  • 🏗️ M&E projects and factory electrical systems

  • 🤖 Automation machines and control equipment

  • 🔌 Any wiring system requiring fast maintenance and stable connections


TRUONG PHAT ELECTRICAL EQUIPMENT CO., LTD
📍 Address: No. 47, Lane 26, Van Phu Urban Area, Phu La, Ha Dong, Hanoi

☎️ 📞 Hotline:
📌 KD1: 0983.607.668-ZALO
📌 KD2: 0964.602.568-ZALO
📌 Khẩn cấp: 0869.685.636-Technical Support

🌐 Websites:
phukientudien.com.vn | codientruongphat.com
📩 Email: kinhdoanh3@truongphatme.com

✅ DBV flat pin terminal
✅ flat pin crimp terminal DBV
✅ DBV terminal connector
✅ flat blade terminal for control panel
✅ DBV terminal supplier
✅ DBV flat pin terminal manufacturer
